Square Wave GeneratorThis square wave generator is like the Schmitt trigger circuit in that the reference voltage for the comparator action depends on the output voltage. This circuit is also classified as an astable multivibrator.
|
Index Electronics concepts Op-amp concepts Reference Simpson | |||||||||
|
Go Back |

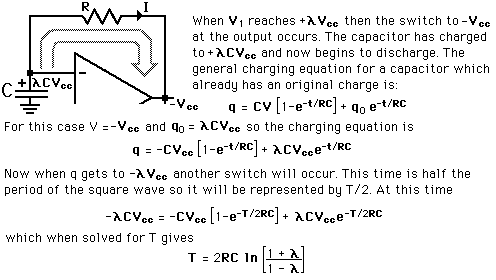

Period of Square Wave Generator
|
Index Electronics concepts Op-amp concepts Reference Simpson | ||
|
Go Back |

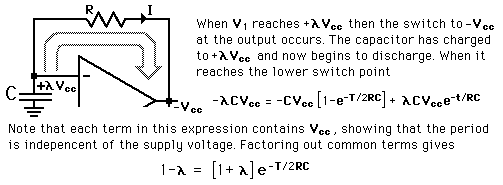

Square Wave Period: Details Now taking the natural logarithm of both sides:
|
Index Electronics concepts Op-amp concepts Reference Simpson | ||
|
Go Back |
Square Wave Generator
|
Index Electronics concepts Op-amp concepts | |||||||||
|
Go Back |

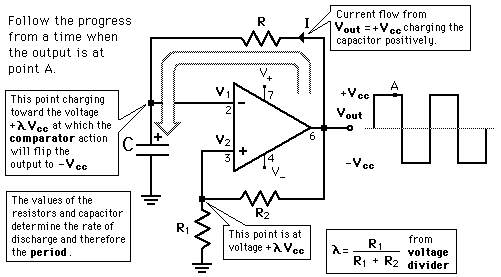

Square Wave Generator Process
|
Index Electronics concepts Op-amp concepts Reference Simpson | |||||
|
Go Back |
, the frequency does not depend upon this supply voltage. If you supplied it with a variable voltage, you could freely change the amplitude without changing the frequency. You could then make it a variable frequency source by making either C or R variable.
