Violin Resonances

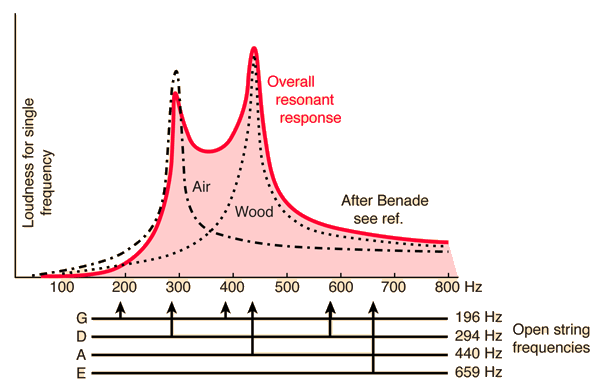

Benade's resonance curve for a violin suggests that the main air resonance would enhance the D string and that the main wood resonance would enhance the A string. It should be compared with Hutchins' measurements for a Stradivarius.

Benade's general resonance curve for a violin which is based on Schelleng's calculations, which he states have been verified by experiment. They are not meant to represent a single, specific instrument, as I understand it, but to give a typical behavior. It is interesting to note that the overall resonance curve is not a simple superposition of the air and wood resonances, which is reasonable if variations in phase caused their effects not to consistently add. The air and wood resonances shown are surprisingly sharp.

Hutchins' resonant curve
Index

String instruments

Musical instruments

Reference
Benade
Ch.24
Schelleng

HyperPhysics***** Sound R Nave
Go Back








Violin Resonances

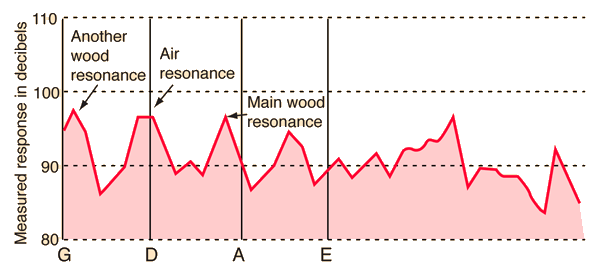

This is a classic resonance curve of a 1713 Stradivarius violin from the measurements of Carleen Hutchins. The prominance and frequencies of the

air resonance and wood resonance are taken as important indicators of the quality of the instrument.

Benade's resonance curve
Index

String instruments

Musical instruments

Reference
Hutchins

HyperPhysics***** Sound R Nave
Go Back

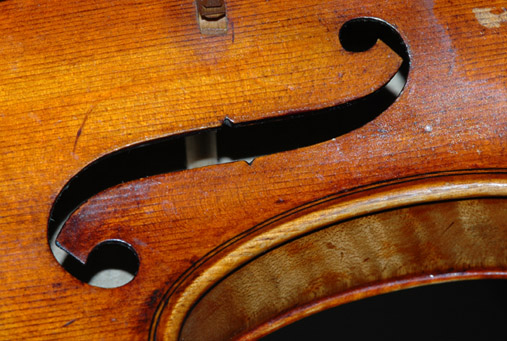

Air Resonance and the f-holes

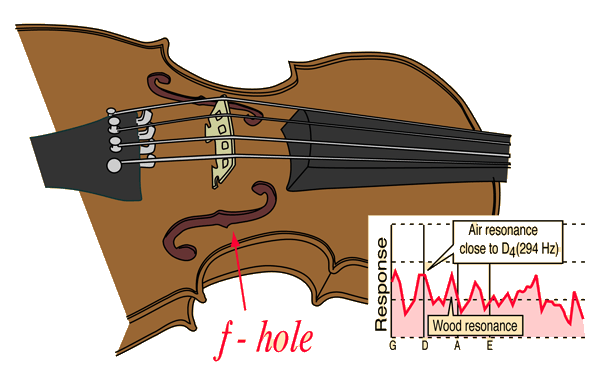

The f-holes of a violin form the opening of a cavity resonator which in the resonance curve for the Stradivarius shown enhances frequencies close to the open string D4 at 294 Hz.
