Magnetic Field of Current Loop

Examining the direction of the magnetic field produced by a current-carrying segment of wire shows that all parts of the loop contribute magnetic field in the same direction inside the loop.

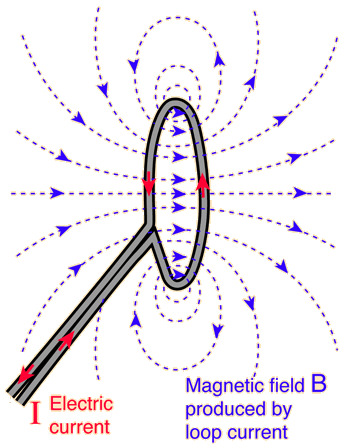

Electric current in a circular loop creates a magnetic field which is more concentrated in the center of the loop than outside the loop. Stacking multiple loops concentrates the field even more into what is called a solenoid.

Field at centerField on axis
 Index

Magnetic field concepts

Currents as magnetic sources

HyperPhysics***** Electricity and Magnetism R Nave
 Go Back

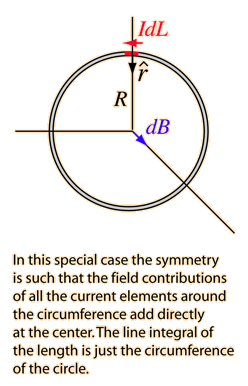

Field at Center of Current Loop

The form of the magnetic field from a current element in the Biot-Savart law becomes

which in this case simplifies greatly because the angle =90 ° for all points along the path and the distance to the field point is constant. The integral becomes

For a current I = Amperes and
loop radius R= m, the magnetic field at the center of the loop is
B = x 10^ Tesla = Gauss.

At a distance z = m out along the centerline of the loop, the axial magnetic field is

B = x 10^ Tesla = Gauss.

The current used in the calculation above is the total current, so for a coil of N turns, the current used is Ni where i is the current supplied to the coil.

The Earth's magnetic field at the surface is about 0.5 Gauss.

Discussion of current loop
 Index

Magnetic field concepts

Currents as magnetic sources

HyperPhysics***** Electricity and Magnetism R Nave
 Go Back





Field on Axis of Current Loop


Show geometric details

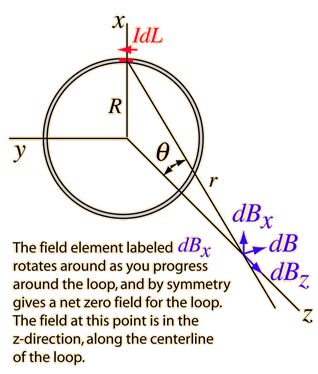

The application of the Biot-Savart law on the centerline of a current loop involves integrating the z-component.

The symmetry is such that all the terms in this element are constant except the distance element dL , which when integrated just gives the circumference of the circle. The magnetic field is then


Calculation

Discussion of current loop
 Index

Magnetic field concepts

Currents as magnetic sources

HyperPhysics***** Electricity and Magnetism R Nave
 Go Back

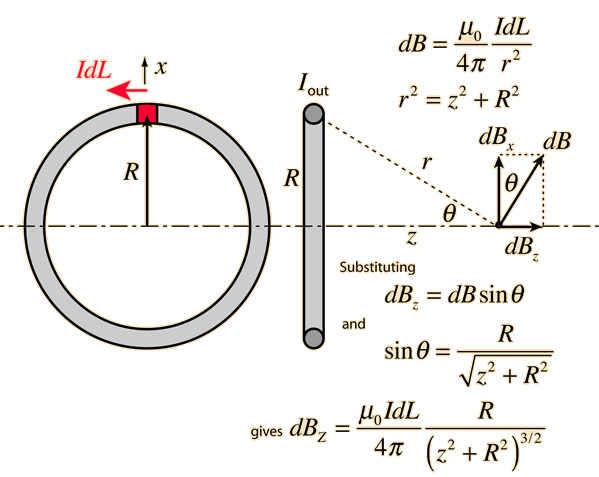

Geometry: Field on Axis of Current Loop
