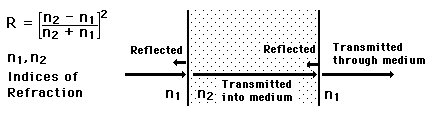

Normal Reflection Coefficient

The reflectivity of light from a surface depends upon the angle of incidence and upon the plane of polarization of the light. The general expression for reflectivity is derivable from Fresnel's Equations. For purposes such as the calculation of reflection losses from optical instruments, it is usually sufficient to have the reflectivity at normal incidence. This normal incidence reflectivity is given by

Calculation to be added.
Thin filmsExample calculation
Index

Reflection concepts

HyperPhysics***** Light and Vision R Nave
Go Back

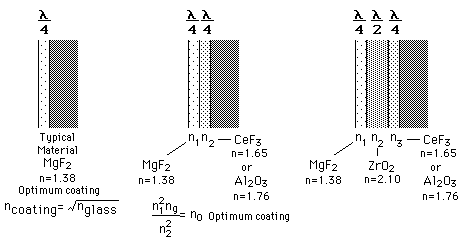

Multi-Layer Anti-Reflection Coatings

A single layer anti-reflection coating can be made non-reflective only at one wavelength, usually at the middle of the visible. Multiple layers are more effective over the entire visible spectrum.

Index

Reflection concepts

Reference
Meyer-Arendt
