Basic Rotational Quantities

In addition to any tangential acceleration, there is always the centripetal acceleration:

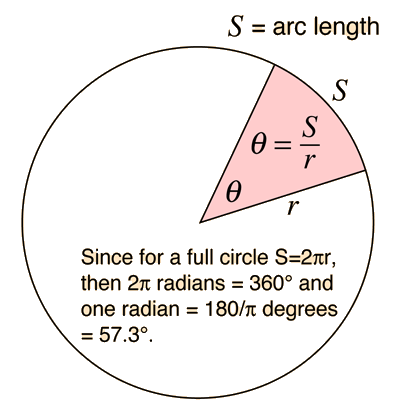

The angular displacement is defined by: For a circular path it follows that the angular velocity is and the angular acceleration is where the acceleration here is the tangential acceleration.

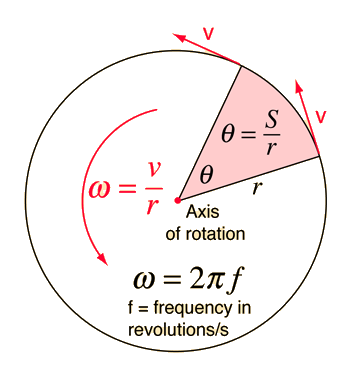

Angular Velocity

Angular velocity can be considered to be a vector quantity, with direction along the axis of rotation in the right-hand rule sense. Vector angular velocity

For an object rotating about an axis, every point on the object has the same angular velocity. The tangential velocity of any point is proportional to its distance from the axis of rotation. Angular velocity has the units rad/s. Angular velocity is the rate of change of angular displacement and can be described by the relationship and if v is constant, the angle can be calculated from

Description of Rotation

Rotation is described in terms of angular displacement, time, angular velocity, and angular acceleration. Angular velocity is the rate of change of angular displacement and angular acceleration is the rate of change of angular velocity. The averages of velocity and acceleration are defined by the relationships:

Average angular velocity:

Average angular acceleration:

where the Greek letter delta indicates the change in the quantity following it.

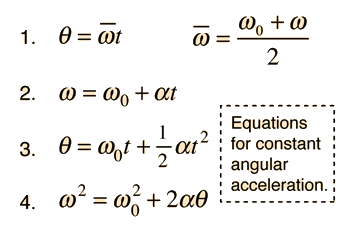

A bar above any quantity indicates the average value of that quantity. If α is constant, equations 1, 2, and 3 represent a complete description of the rotation. Equation 4 is obtained by a combination of the others.

You might want to try a numerical exploration of these equations and see them stated in words.

Rotation Equations

These rotation equations apply only in the case of constant angular acceleration. It is assumed that the angle is zero at t=0 and that the motion is being examined at time t.

*These quantities are assumed to be given unless they are specifically clicked on for calculation.

You can probably do all this calculation more quickly with your calculator, but you might find it amusing to click around and see the relationships between the rotational quantities. It's like a game to see if you can set up a consistent set of parameters. Associated with each active text is a Javascript calculation routine.

Comments on Rotation Calculation

In the example calculation in the section Rotation Equations above, some assumptions were made about the calculation order. The rotation equations represent a complete set of equations for constant angular acceleration rotations, but in certain types of problems, intermediate results must be calculated before proceeding to the final calculation. In the example calculation, you may have to do intermediate calculations, e.g., to establish the final angular velocity, in order to set up the problem you wish to solve, just as if you were working the problem with calculator and paper. In the example calculation, the time, initial angular velocity, and angular displacement were considered given (primary) unless they were being calculated (e.g., in calculating α). If θ is being calculated, then ω is assumed given, so it must be calculated first if you want to specify α. If initial angular velocity is being calculated, then ω is presumed given. If time is being calculated then α is presumed given. These presumptions are included in the Javascript routines.
